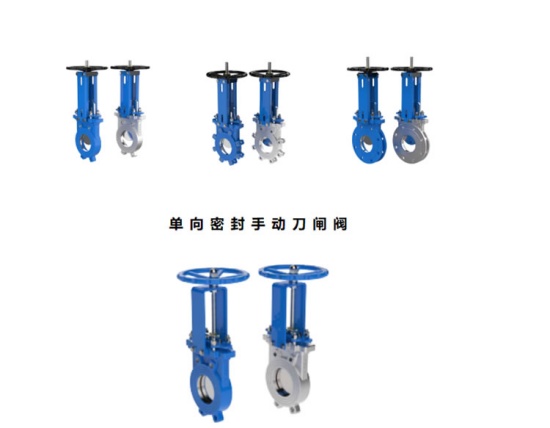

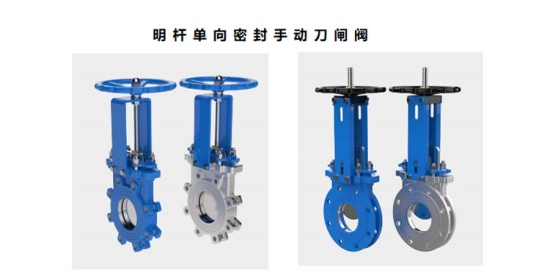

The knife gate valves provided by Viti Industry have the advantages of small volume and short structural length, such as the up and down linear movement of the valve plate to open and close the pipeline. It is applicable to paper mills, sewage treatment plants, mines, water treatment equipment, gelatinous media, limited installation space and other occasions, with a preset limited system.
The performance parameters of the knife gate valve provided by Viti Industry
| Name | Parameters |
| Nominal diameter | 2 "-80" (DN50-DN2000) |
| Pressure level | CLASS 150-300 |
| Applicable temperature | - 20 ~ 620 ℃ |
| Valve body material | WCB, CF8, CF3, CF8M, CF3M |
| Drive form | Manual, pneumatic, electric, bevel gears, etc. |
| Connection form |
Flange type, wafer type, etc. |
| Applicable medium |
Ash residue, coal cinder, dust, gray mold water, etc |
