regulatingvalve

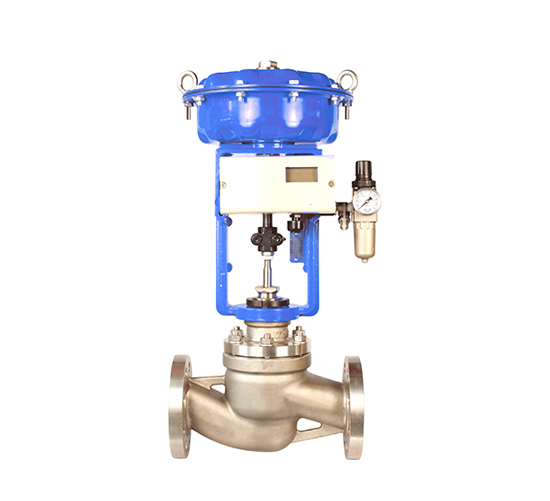

The valve core of the single-seat control valve provided by Viti Industry adopts an upward-guided structure. The valve body structure is compact, and the fluid channel is in an S shape. It features low pressure drop loss, large flow rate, wide adjustable range, and high flow characteristic accuracy. It is equipped with a standard W&T brand pneumatic diaphragm actuator, which features a compact structure and high output force.
Design features of the single-seat control valve provided by Viti Industry:
It adopts a modular design with strong universality and interchangeability, featuring a compact structure. Only by replacing some parts can the transformation of different valve internals be achieved.
2. All the internal components of the valve adopt a quick-release structure. The disassembly and assembly process can be carried out without special tools, making maintenance extremely convenient.
3. There are various valve internals to choose from, featuring excellent cavitation resistance and noise reduction capabilities.
Performance parameters of the single-seat control valve provided by Viti Industry:
| Nominal diameter: | 1/2 "-16" (DN15-DN400) |
| Pressure level: | CLASS 150-2500 |
| Upper valve cover: | Standard type: -20 to +200℃ Heat sink type: +230~538℃ |
| Valve body material: | WCB, WC6, WC9, LCB, CF8, CF8M, CF3M |
| Drive mode: | Pneumatic, electric |
| Connection method: |
Flange type, welded type, socket welding |
Demand feedback
Vite Control Fluid GMBH in Germany specializes in manufacturing a full range of valve products, including automatic control regulating valves, which are applied in harsh working conditions such as high temperature, high pressure, easy erosion and corrosion. Vite Control Fluid GMBH in Germany has highly specialized engineering personnel and production equipment, and collaborates with renowned domestic universities and professional institutions in the fields of material development, fluid mechanics, valve system design and production.
