W&T desuperheating water regulating valve: Precise temperature control, ensuring the stable operation of boilers

In thermal power plants, the desuperheating water regulating valve is a key device in the boiler superheater, reheater and steam bypass system. It automatically adjusts the valve opening based on signals such as steam temperature and pressure, controls the amount of water sprayed, and ensures that the required steam temperature remains within the allowable range. As one of the core valves with a large number and complex working conditions, the performance of the desuperheating water regulating valve directly affects the operational efficiency and safety of the boiler.

W&T Fluid Control, inheriting the century-old German valve technology, offers two major series of products for various complex working conditions in the desuperheating water system: superheater desuperheating water regulating valves and reheater desuperheating water regulating valves. With precise regulation, anti-erosion and long service life as its core advantages, it helps power plants solve common industry problems such as poor regulation linearity, erosion internal leakage and small opening vibration.

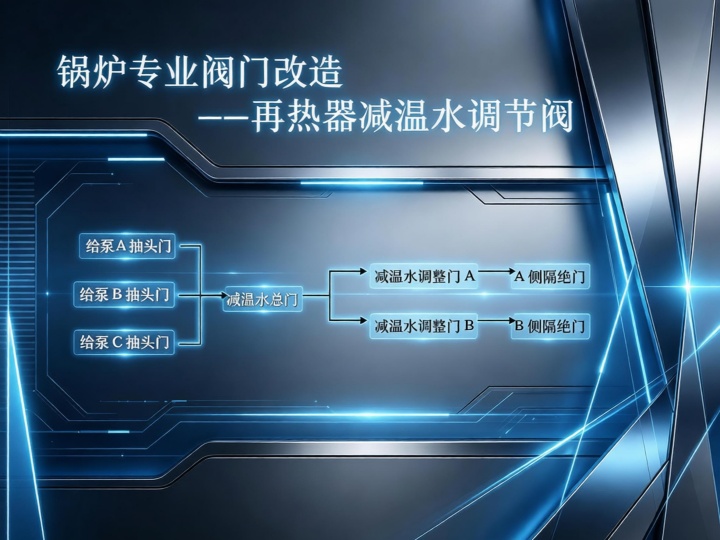

1. Reheater desuperheating water regulating valve: Multi-stage pressure reduction, solving the problem of high pressure difference

The pressure difference that the reheater desuperheating water regulating valve bears is large, and it has extremely high requirements for the throttling grade and anti-scouring capacity.

    Vittey offers two technical routes:

    1. Single-layer valve sleeve structure

It is suitable for conventional pressure difference working conditions, with a compact structure, good flow capacity and rapid response.

    2. Multi-layer sleeve structure (recommended for high-parameter working conditions)

The multi-stage pressure-reducing sleeve design is adopted, which decomposes the high pressure difference into multiple stages of gradual pressure reduction, effectively reducing the medium flow rate, avoiding the erosion and damage to the sealing surface caused by flash evaporation and cavitation, and significantly extending the service life of the valve. It is especially suitable for harsh working conditions such as reheater desuperheating water systems with high pressure differences and easy erosion.

The core pain points to be addressed

• The low throttling level of the original structure leads to internal leakage during scouring → multiple layers of sleeves gradually reduce the pressure

• The valve is not closed tightly → Optimize the matching of the closing force of the actuator

• Adjust the linearity difference → Accurately select the CV value to avoid improper selection

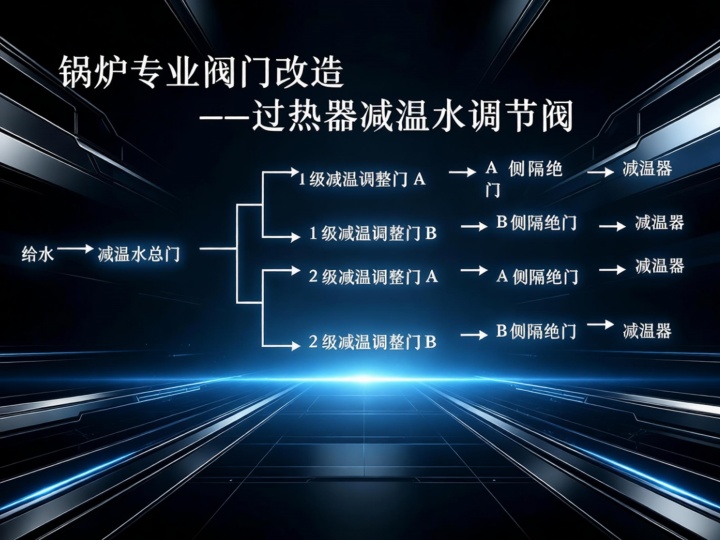

2. Superheater desuperheating water regulating valve: Two types, precisely matched

The superheater desuperheating water regulating valve is divided into primary desuperheating and secondary desuperheating. Vite provides differentiated solutions for different workstations

    Balanced structure

The low-inlet and high-outlet balanced design features a fine valve stem with low friction, ensuring smooth adjustment. It is suitable for conventional superheater desuperheating conditions. The cylindrical surface seal of the energy storage ring is adopted, which ensures high sealing reliability.

    2. Pilot-operated structure (suitable for precise regulation of high pressure difference

The pilot valve core first opens to establish a pressure difference, then drives the main valve core to act, significantly reducing the opening and closing torque and achieving higher regulation accuracy. It is particularly suitable for the primary desuperheating system of superheaters that requires precise control of small flow rates.

    The core pain points to be addressed

• Small opening operation vibration and whistling → Pilot structure + precise CV value matching

• Improper selection leads to poor linearity → Implement the on-site operation parameters and calculate the selection specifically

• Valve not closing tightly → Balanced type + high-strength sealing pair design

Iii. The Core Competitiveness of Viti Desuperheating Valves

Iv. Why Choose Vitite?

    1. German technological heritage: Nearly a hundred years of experience in industrial valve manufacturing, mastering core regulation technologies such as multi-stage pressure reduction and pilot-operated

    2. Global manufacturing quality: Core manufacturing in Russian factories, assembly and inspection in Kaifeng and Xiamen bases, ensuring that each valve meets German technical standards

    3. Pre-selection service: Weitai adheres to the principle of "confirming on-site parameters before scheduling" - pressure, temperature, flow rate, and the usage of the original valve - none of which can be missing. Only when the parameters are precise can the most suitable valve be matched

    4. Localized rapid response: The Asia-Pacific Center is fully responsible for business and services in China. The technical team can conduct on-site diagnosis and provide full life-cycle support from selection, installation to operation and maintenance for the desuperheating water regulating valve.

If you make the right choice, the temperature control of the boiler will be stable. Viti - With precise selection and reliable products, helps power plants solve various stubborn problems of desuperheating water valves.
