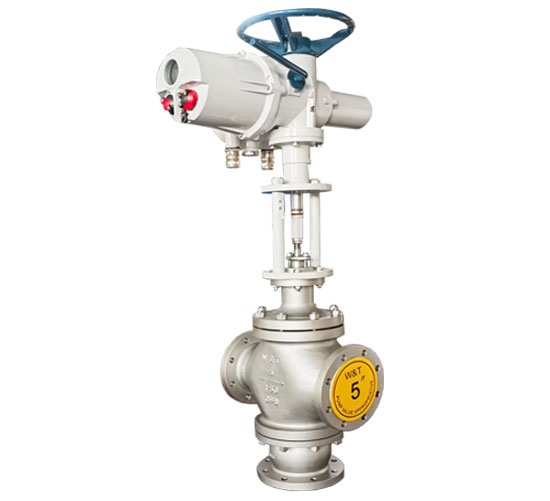

Design features of the three-way control valve provided by Viti Industry:
There are three entrances and exits connected to the pipeline, which is equivalent to two single-seat valves being integrated into one.
2. According to the mode of operation, they are divided into two types: three-way combined flow control valves and three-way split flow control valves.
A combined flow control valve is a device where two fluids are mixed through a valve. For instance, two fluids of different temperatures are mixed through a valve to form a fluid with a temperature between the previous two. Note: This type of valve has two inlets and one outlet.
② The diversion control valve divides the fluid of different weights into two paths after passing through the valve. When the valve closes one outlet, it opens the other. This type of valve has one inlet and two outlets.
Performance parameters of three-way control valves provided by Viti Industry
| Nominal diameter | 3/4 "-16" (DN20-DN400) |
| Pressure rating | CLASS 150-600 |
| Valve cover |
Standard version: -20 to +200℃ Heat sink type: +230℃ to 538℃ Extended type: -196~200℃ |
| Valve body material | WCB, WC6, WC9, CF8, CF8M, CF3M |
| Connection method | Flange type |
Demand feedback
Vite Control Fluid GMBH in Germany specializes in manufacturing a full range of valve products, including automatic control regulating valves, which are applied in harsh working conditions such as high temperature, high pressure, easy erosion and corrosion. Vite Control Fluid GMBH in Germany has highly specialized engineering personnel and production equipment, and collaborates with renowned domestic universities and professional institutions in the fields of material development, fluid mechanics, valve system design and production.
