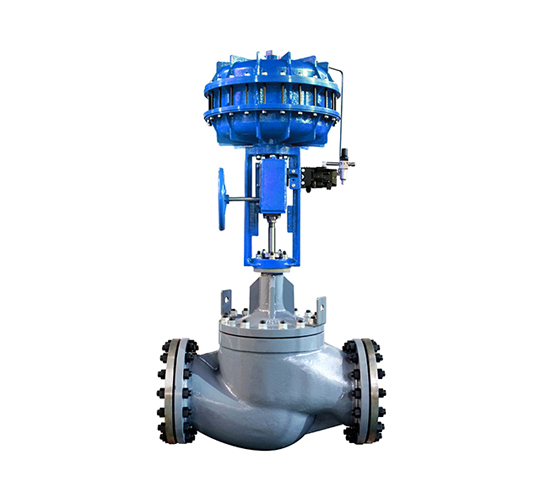

Design features of the sleeve control valve provided by Viti Industry:
The stability of the sleeve control valve is good. As the valve plug of the sleeve control valve is equipped with a balance hole, it can reduce the unbalanced force of the medium acting on the valve plug. Coupled with sufficient valve plug guidance, it is less likely to cause the valve core to oscillate.
2. The sleeve is pressed onto the valve body through the upper valve cover. Unlike single-seat control valves and double-seat control valves, the valve seat is connected to the valve body through threads, making disassembly and assembly simple and convenient.
The performance parameters of the sleeve control valve provided by Viti Industry
| Nominal diameter: | 1/2-24 "(DN15-DN600) |
| Pressure level: | CLASS 150-2500 |
| Upper valve cover: | Standard type: -20 to +200℃ Heat sink type: +230 ℃ to 538℃ Extended type: -196℃ to 200℃. |
| Valve body material: |
WCB, WC6, CF8, CF8M, CF3M |
| Drive mode: |
Pneumatic, electric |
| Connection form: |
Flange type, welded type, socket welding |
