Analysis of the full range of check valves from Vitti Fluid Control GMBH, Germany

In the intricate network of industrial pipelines, there is a type of valve that quietly safeguards the safe operation of the system - it does not require external force to drive and opens and closes solely by the energy of the medium itself. It seems simple, but it shoulders the important responsibility of preventing the backflow of media and protecting core equipment. This is the check valve, an indispensable "one-way guardian" in industrial processes.

With a century of German manufacturing experience, Viti Fluid Control GMBH in Germany has developed a product matrix of check valves covering all working conditions and scenarios. With outstanding material technology, precise manufacturing processes and innovative structural designs, it provides the most reliable fluid one-way control solutions for the global energy, chemical, power, water treatment and other industries.

I. Brand Heritage: A century-old German technological heritage

The history of Vitesse can be traced back to 1932 in Frankfurt am Main, Germany. Over the course of more than a century, the five words "Made in Germany" have long been integrated into the brand DNA of Viti. The company has highly professional engineering personnel and production equipment, and has carried out in-depth cooperation with universities and professional institutions in fields such as material development, fluid mechanics, and valve system design, continuously promoting technological innovation.

Viti has multiple production plants worldwide and independent office locations and agency sales networks in over 40 countries and regions. Its products are widely used in harsh working conditions such as high temperature and high pressure, easy erosion and corrosion. In cutting-edge fields like ultra (ultra) critical units, IGCC, secondary reheating technology and large-scale CFB units, it provides overall pipeline fluid solutions for hundreds of enterprises worldwide.

Ii. Core Value of Check Valves: Preventing backflow and ensuring safety

A check valve is an automatic valve that opens and closes based on the pressure of the medium. When installed in a pipeline system, its core function is to prevent the backflow of the medium. When the system suddenly stops running for some reason (such as a water pump suddenly stopping), the high-pressure medium in the pipeline will flow back in the opposite direction, causing a severe impact on core equipment such as the water pump impeller. At this point, the check valve closes immediately, cutting off the reflux path and ensuring the safety of the equipment.

In hot water systems, the role of check valves is particularly crucial - preventing high-temperature hot water from flowing back into pipes that are not heat-resistant, thus avoiding pipe damage or even scalding accidents to personnel. It is precisely this characteristic of "silent protection" that makes check valves an indispensable safety barrier in industrial and civil pipeline systems.

Iii. Full Range Product Matrix: Professional solutions covering all working conditions

Viti has a profound understanding of the differentiated demands for check valves under various working conditions and has established a full range of product systems covering multiple structural forms, pressure ratings and connection methods.

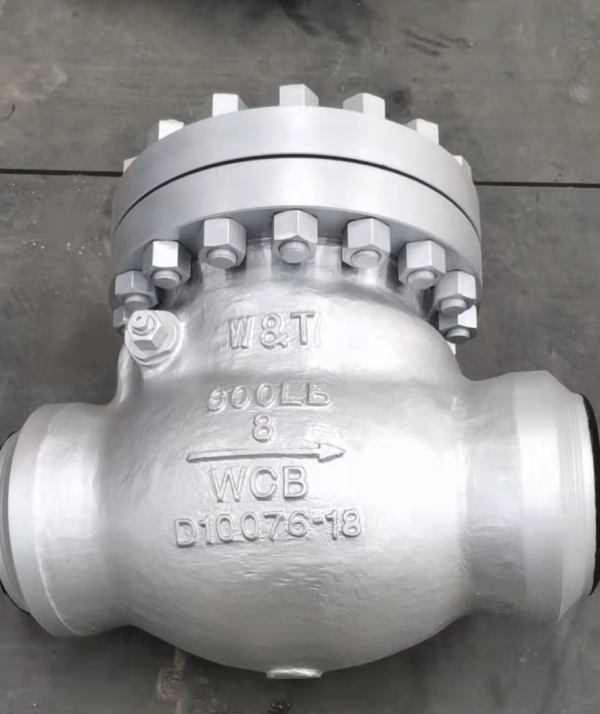

3.1 Swing Check Valve: A reliable choice for large-diameter working conditions

The Viti swing check valve adopts a rotating structure of a rocker and a valve disc. When the medium flows in the forward direction, it pushes the valve disc to open; when it flows in the reverse direction, the valve disc falls back and closes relying on its own weight and backflow pressure.

Core technological advantages

Compact structure and lightweight design: The structure is short in length, small in volume and light in weight, with its weight being only 1/4 to 1/20 of that of traditional flanged check valves

Quick closure and low water hammer pressure: The valve plate closes quickly, effectively suppressing water hammer impact

Unobstructed flow channel with low resistance: Low fluid resistance leads to low system energy consumption

Sealing surface strengthening treatment: The sealing surfaces of the valve disc and valve seat are made by surfacing with iron-based alloy or Stellite cobalt-based hard alloy, which has excellent wear resistance, high-temperature resistance, corrosion resistance and scratch resistance, and a long service life

Performance parameters: Nominal diameter 2 "-24" (DN50-DN600), pressure rating Class 150-2500, applicable temperature range -50℃ to 700℃ (depending on material), valve body materials include WCB, WC6, WC9, F22, CF3, CF3M, CF8, CF8M, etc.

3.2 Lift check valve: The preferred choice for small diameter and high precision

The structure of the Viti lift check valve is similar to that of a stop valve, with the valve disc rising and falling vertically in the guide cylinder of the valve cover. When the medium flows in the forward direction, the pressure pushes the valve disc to rise and open. When the medium flows back, the valve disc falls back and closes under the action of its own weight and the reflux pressure.

Core technological advantages

Simple structure, reliable operation: few moving parts, low failure rate, and convenient maintenance

Precise guidance and reliable sealing: The valve disc rises and falls along the guide cylinder, ensuring that it accurately positions on the valve seat sealing surface each time it is closed

The opening and closing principle is clear: when the thrust of the medium is greater than the weight of the valve disc, the valve opens. When the pressure after the valve plus the gravity of the valve disc is greater than the pressure before the valve, the valve closes to prevent the backflow of the medium

Performance parameters: Nominal diameter 2 "-24" (DN50-DN600), pressure rating Class 150-2500, applicable temperature range -50℃ to 700℃ (depending on material), connection forms include flange type and welded type.

3.3 Wafer check valve: An ideal choice for space-constrained working conditions

The Viti wafer check valve adopts a double-disc or single-disc structure and is installed between two flanges. With its ultra-short structural length, it has become the preferred choice for space-constrained working conditions.

Core technological advantages

Ultimate compact design: The structural length is only 1/4 to 1/8 of that of traditional flanged check valves, with a small volume and light weight

Flexible installation method: It can be used on both horizontal and vertical pipes and is easy to install

Sensitive action and good sealing performance: The valve disc stroke is short, the closing impact force is small, and the action is sensitive and reliable

Low flow resistance and low energy consumption: The flow channel is unobstructed, resulting in low fluid resistance

Long-life design: The overall structure is simple and compact, with a long service life and reliable performance

Working condition coverage: Applicable to various pipelines with nominal pressure ranging from PN1.0MPa to 42.0MPa (Class150 to 2500), nominal diameter from DN15 to 1200mm (NPS1/2 to 48), and working temperature from -196 to 540°C. By choosing different materials, it can be applied to various media such as water, steam, oil products, nitric acid, acetic acid, strong oxidizing media and uric acid.

3.4 Silent/Slow-closing Check Valve: The Terminator of water hammer Effect

For critical applications such as the outlet of water pumps that are prone to water hammer impact, Vite offers silent and slow-closing check valves. These valves adopt multi-stage slow-closing, damping cylinders, and spring-assisted technologies, which can significantly reduce or even eliminate water hammer impact, protect the safety of pipeline systems, and lower noise and vibration.

3.5 Axial Flow Check Valve: The ultimate choice for high-end working conditions

For high-end applications that require extremely low flow resistance and extremely high response speed, the Viti axial flow check valve, with its streamlined flow channel design and spring-assisted closing mechanism, achieves nearly zero leakage sealing performance and millisecond-level response speed. It is an ideal choice for critical working conditions such as compressor outlets and high-pressure gas injection.

Iv. Profound Accumulation in Materials Science: The Cornerstone for Forging Outstanding quality

The fundamental reason why Vitti check valves can maintain outstanding performance under harsh working conditions lies in their profound understanding and ultimate pursuit of materials science.

Viti strictly uses high-grade materials that meet international standards, including:

High-performance stainless steel: such as 316L, super duplex steel (F51/F55), etc

Special alloys: Hastelloy, Monel (400/500), INCONEL, 20# alloy, etc

Special materials: titanium alloy, aluminum bronze, chromium-molybdenum steel, etc

These materials perform exceptionally well in terms of corrosion resistance, high-temperature and high-pressure resistance, and wear resistance, and can adapt to a wide range of working conditions from strong acids and alkalis to seawater, from high-temperature steam to ultra-low-temperature media. Viti collaborates with universities and professional institutions in the field of materials development, constantly pushing the boundaries of materials technology.

V. Precision Manufacturing and Quality Control: The Perfect Interpretation of German Craftsmanship

Viti possesses globally advanced machining centers, CNC machine tools and a strict production process control system. The processing accuracy of the valve body, valve disc and sealing surface reaches the micron level, ensuring the perfect fit of the sealing pair, fundamentally reducing the risk of internal leakage, lowering the wear during the opening and closing process, and extending the service life of the product.

Quality control runs through the entire process from raw materials entering the factory to finished products leaving the factory.

Raw material inspection: Chemical composition analysis, mechanical property testing

Process control: Online monitoring of key processes and dimensional accuracy detection

Finished product testing: shell strength test, sealing performance test (referred to as pressure if far exceeding the standard), non-destructive testing, life test

Every Vitti check valve undergoes strict testing to ensure compliance with or even exceeding international standards such as API, DIN, and ISO.

Six. Innovative Design: Derived from profound insights into industrial challenges

The engineering team of Viti delves deeply into fluid dynamics and continuously optimizes the flow path design of check valves, making their flow resistance coefficient lower and flow efficiency higher.

In terms of sealing technology, Viti constantly breaks through and innovates:

Composite sealing structure: It adopts various sealing materials such as PTFE, RPTFE, metal hard seals, and special elastomers

Eccentric sealing design: Double eccentric and triple eccentric butterfly check valve structure, ensuring excellent sealing performance under harsh conditions such as high pressure difference, high temperature and wear, achieving true "zero leakage"

Rapid response technology: The well-designed spring or disc structure ensures that the valve can open and close quickly and sensitively when the medium flow rate changes slightly, reducing backflow and lowering the risk of closing shock and water hammer

Vii. Summary of the Core Advantages of Vittey Check Valves

Looking at the full range of Viti check valves, the following six core advantages have built an irreplaceable technological moat:

1. Leading advantages in materials science and technology

Viti's understanding of materials has reached a state of perfection. From high-performance stainless steel to special alloys, the selection of each material is based on a profound understanding of the working conditions. The surface treatment process is equally exquisite, significantly enhancing the corrosion resistance and product lifespan.

2. The ultimate pursuit of precision manufacturing

The soul of "Made in Germany" lies in its obsession with precision. Viti is equipped with the world's most advanced production and testing facilities. Every process is engraved with Viti people's ultimate pursuit of quality. Every valve undergoes strict testing before leaving the factory to ensure it meets or even exceeds international standards.

3. A product matrix covering all working conditions

Viti offers an extremely rich product line Covering temperatures ranging from low to ultra-high (-196°C to over 700°C), from vacuum to ultra-high pressure (Class150 to Class2500+), various diameters (DN15-1200mm), various connection methods (flange type, wafer type, welded type), and various special structures (swing type, lifting type, wafer type, axial flow type, silent type, etc.) It can meet the demands of almost all complex working conditions.

4. Outstanding reliability and long service life

Thanks to high-quality materials, precise manufacturing and optimized design, the Viti check valve has an extremely low wear rate under normal working conditions, stable performance and a service life several times longer than that of ordinary products. This means fewer maintenance frequency, lower spare parts inventory requirements and longer system trouble-free operation time.

5. Perfect service and technical support

Viti has a well-established global sales and service network, capable of providing timely technical support, professional selection guidance, rapid spare parts supply and reliable after-sales service. From technical communication, product selection to installation and commissioning, as well as maintenance and upkeep, the professional engineering team of Viti provides full-process technical support to ensure that every user can enjoy a "timely, high-quality and professional" service experience.

6. Full life cycle cost advantage

Although the initial purchase cost of Vittey check valves may be slightly higher than that of ordinary products, their outstanding sealing performance, extremely long service life, very low failure rate and maintenance cost make them highly valuable in industrial applications that require high reliability, high efficiency and long-term operation. Choosing Vittey check valves is essentially a wise investment for the long-term safe and stable operation of the system as well as for reducing the total life cycle cost.

  Conclusion: Choose Vitai, choose the eternal guardian of industrial safety

From a workshop in Frankfurt, Germany in 1932 to today's global leader in industrial valves, Viti has spent a century interpreting the essence of "Made in Germany". The Viti check valve series is the perfect embodiment of this essence - forging reliable quality with precision materials, conquering harsh working conditions with innovative designs, and safeguarding system safety with outstanding performance.

Whether you are dealing with a high-temperature and high-pressure steam system or a corrosive medium rich in particles, the Viti check valve family can provide the most reliable one-way cut-off guarantee for your process flow with the most professional attitude. Choosing Vitite is not only about selecting a high-quality check valve product, but also about choosing a technical partner that has endured for over a century, jointly safeguarding the safety and smoothness of the industrial bloodline.
